Unsaturated Polyester Resin
Marine Resin
Tooling Resin

RX-D2003 Mould Resin

RX-D2003 Mould Resin
RX-D2003 Mould Resin

RX-D2003 Mould Resin

Pre-accelerated and pre-thixotropic modified vinyl resin with excellent wetting and curing properties. This modified vinyl mould resin serves as a reliable mould resin for composite mould manufacturing. The tooling resin is formulated with premium vinyl chemistry, and this tooling resin delivers outstanding overall performance for mould construction.

● Modified Vinyl Mould Resin

With pre-accelerated and pre-thixotropic features, this modified vinyl mould resin can wet fiberglass reinforcements well and cure steadily, simplifying lay-up operations for mould fabrication.


● High Heat Deflection Temperature

This mould resin boasts a high heat deflection temperature after full cure, allowing finished moulds to endure repeated thermal cycles during composite part production.


● High Toughnes

The tooling resin maintains high toughness to resist impact and crack propagation. Moulds made from this tooling resin can withstand frequent demoulding without easy damage.


● Excellent Corrosion Resistance

This modified vinyl mould resin provides excellent corrosion resistance against common chemicals. It protects mould surfaces from erosion and extends the service life of your mould tools.

WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message

Mould Resin Technical Specifications

AppearanceViscositySolid ContentGel Time (25℃)
Pink cloudy liquid600 mPa.s61%22 min

Process & Logistics & Packaging

Method

Process

Suitable for hand lay-up process of mold and boat manufacturing.

Conditions

Conditions

Temp 15°C-30°C. Humidity<80%.

Curing

Curing

MEKP (1.0%-2.0%).

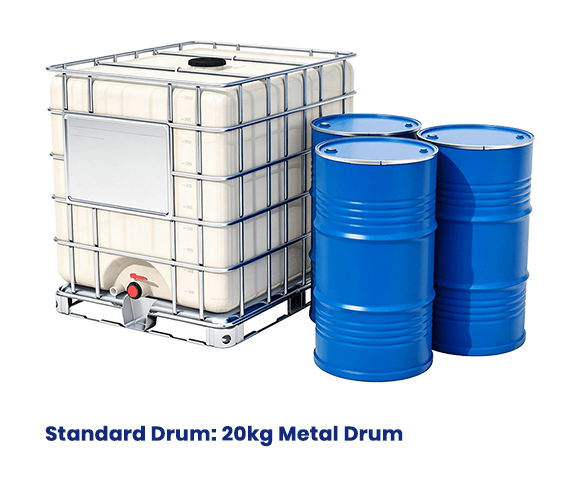

Shipping

Shipping

80 Drums / 20' FCL

Hazard Class

Hazard Class

Class 3 (Flammable)

FAQ

Q: Does this product have thixotropic property?
A: This mould resin is pre-thixotropic resin with thixotropy index of 2.0.
Q: How is the product's wetting performance?
A: Possesses excellent wetting and curing properties.
Q: What benefits can your mould resin bring for prototype making?
A: Our tooling resin, also known as mould resin, delivers stable hardness for mould fabrication. This tooling resin features low shrinkage, easy pouring and fine surface finish, ideal for creating durable moulds for small batch production.
Q: What substrates can your mould resin bond well with?
A: This mould resin can form strong adhesion on fiberglass, wood and metal surfaces. It cures uniformly at room temperature, reducing the risk of cracks and deformation during the mould manufacturing process.
Q: How long does it take for your mould resin to fully cure?
A: The curing time of our mould resin depends on ambient temperature and catalyst ratio. Normally, it reaches demould strength within several hours and achieves full mechanical strength after 24 hours for reliable mould use.
Q: Can your mould resin be used for high-temperature working moulds?
A: Our mould resin owns good heat resistance after complete curing. It can withstand moderate temperature cycles during casting processes, which suits most resin casting and composite mould making applications.
Q: What safety tips should we follow when handling mould resin?
A: Please wear gloves and goggles while operating mould resin. Keep the workspace well ventilated, avoid direct skin contact, and store the resin and hardener separately in cool and dry conditions.
Q: Is your mould resin suitable for complex mould geometries with fine details?
A: Our mould resin has excellent flowability to replicate intricate patterns sharply. It releases smoothly from master models without tearing, helping manufacturers produce precise moulds with consistent surface details for casting jobs.
